Looking for my threads about magnetic tapes, DIY floppies, typewriter-tty conversion?
Or pixelart or hacks or retro screenshots? I got a page with links there:

http://www.ninakalinina.com/links.htm

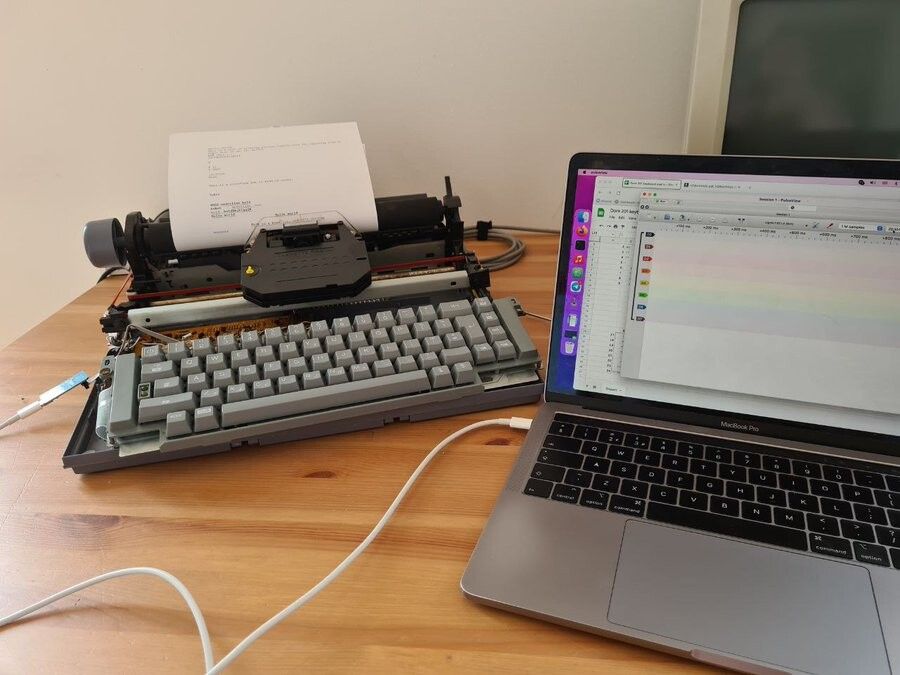

An electric typewriter connected to a laptop running a logic analyzer software
Nina Kalinina
@nina_kali_nina@tech.lgbt

=Intro thread=
Here’s a few things that I am doing. First: I scavenge electronics, like this Linux SBC from a TV. https://github.com/ninakali/chip_scavenger/blob/main/src/scavenge/008_tv/index.md

A computer board on top of a wooden table. A big metal power source behind it. Lots of wires connect things together
Nina Kalinina
@nina_kali_nina@tech.lgbt

Well, actually, I can't think of a way to do so... Maybe some other time.

Anyhow, I've uploaded the Caleid OS and the SIM3020 to the Internet Archive: https://archive.org/details/caladdin/Screenshot%202026-02-01%20at%2015.16.33.png

Grab a DosBox-X with PC-98 support and try it yourself~

Nina Kalinina
@nina_kali_nina@tech.lgbt

Caleid is a "Mobile Navigator", not a "Business navigator", so it has three built-in games.

The last file in the OS, the 300 KB blob CALEDATA.40, doesn't have any non-compressed bitmaps.

Can we run the OS in the simulator? It is shipped with it, after all. Hmm... Let's try! (cont)

An image extracted from the Caleid ROM. It shows 4 aces of different suits, and text "Congratulations!"
Nina Kalinina
@nina_kali_nina@tech.lgbt

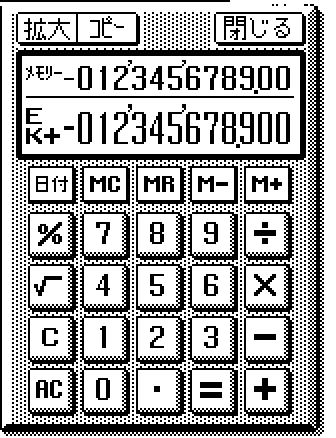

What could be better than a calculator app? Well, of course, two calculator apps! Yes, Caleid has two built-in calculators: one is stand-alone and one is a pop-up calculator. Handy, eh?!

(cont)

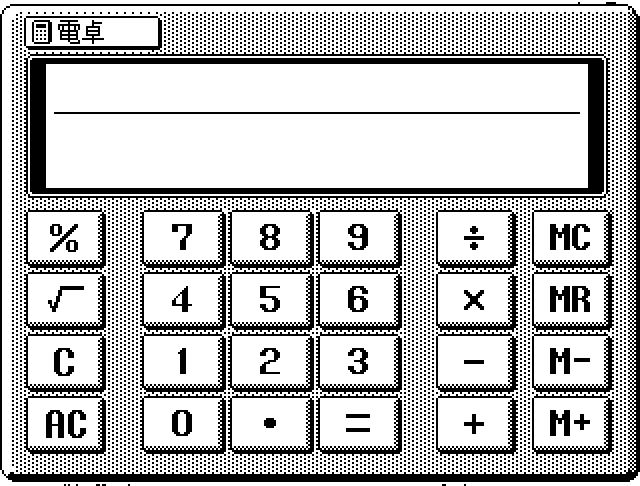

A Calculator app, full-sized screenshot from Caleid ROM. Looks like a wide calculator with soft corners A pocket-size calculator with a vertical key layout from the Caleid ROM. It has buttons to copy the results of the calculation
Nina Kalinina
@nina_kali_nina@tech.lgbt

Some more built-in apps in the Caleid OS: "easy sheet" is a spreadsheet program with built-in templates (mortgage, currency converter, GOLF SCORE wtf) and the networking app (computer, electronic mail, FAX).

(cont)

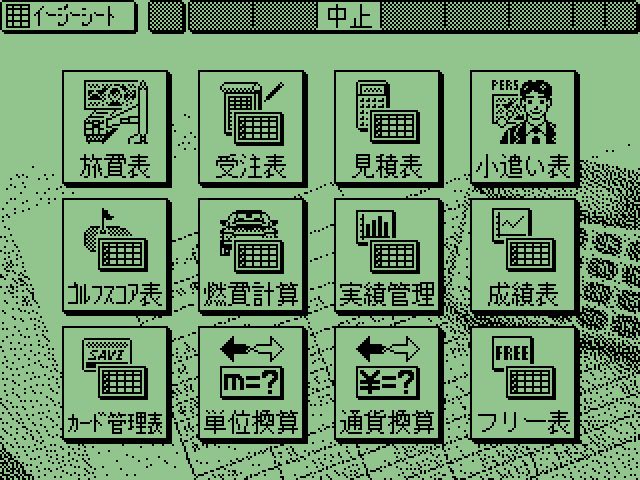

A screenshot of Easy Sheet program showing different categories of spreadsheets, with cute pixel icons. The background is a photo of a paper spreadsheet and a calculator Connections application, showing three sub-categories of connection apps, on top of a heavily dithered photograph of some skyscrapers
Nina Kalinina
@nina_kali_nina@tech.lgbt

CALEDATA.30 stores a different part of the Casio Caleid OS - the applications. It also features the very same images we've seen in our BN-20 BIOS. I'm uploading them here upscaled and colour-corrected.

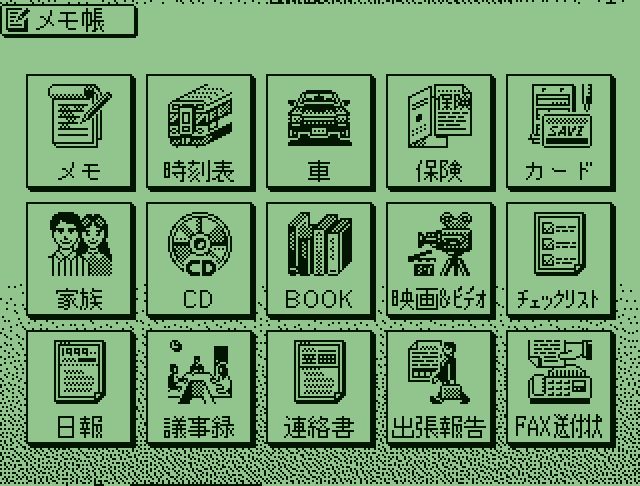

The "notes" application has lots of different categories of notes: cars, cards, CDs, books, films, and so on.

(cont)

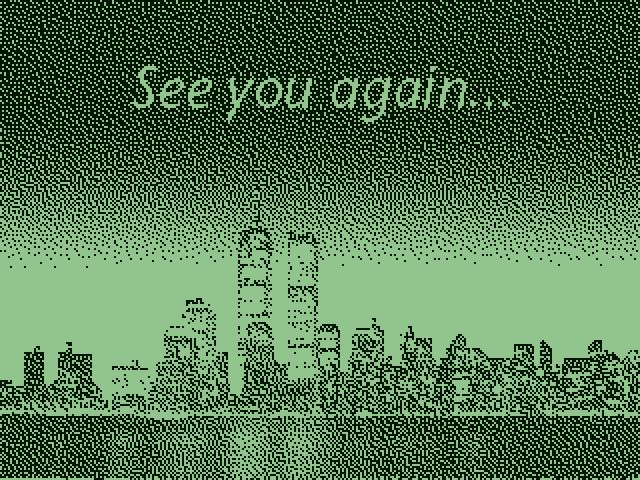

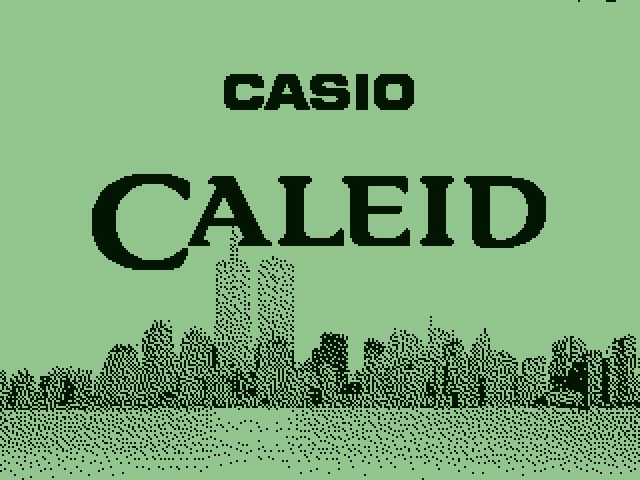

Casio Caleid splash screen, extracted from ROM. Features a megapolis photo with twin towers Casio Caleid "See you again..." screen, extracted from ROM. Features a megapolis photo with twin towers Images of a fax and a vintage-looking PC extracted from the Casio Caleid ROM. A screenshot of "memos" app extracted from the Casio Caleid ROM, showing multiple note categories, from family and diary to cards, CDs, and business trips
Nina Kalinina
@nina_kali_nina@tech.lgbt

What is the most optimal way to make a monthly calendar program? Why, of course pre-render the calendar and store it is a bitmap in the ROM.

How ELSE are you going to use all this massive 2 megabyte ROM?

This operating system is something else.

(cont)

A bitmap of multiple monthly calendars extracted from Casio Caleid ROM
Nina Kalinina
@nina_kali_nina@tech.lgbt

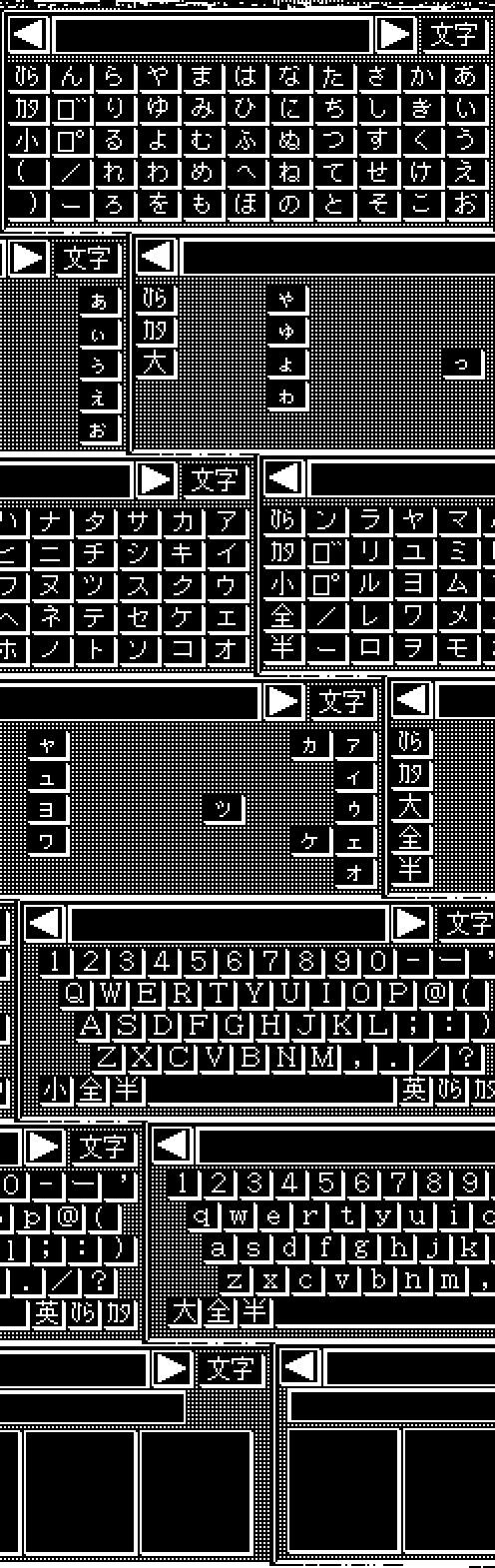

The contrast correction UI is something we've seen already, in both Casio BN and Casio PV, but this list of on-screen keyboards (including handwriting recognition keyboard) is something I personally have not seen before in this product series.

(cont)

A bitmap for image contrast adjustment extracted from Casio Caleid OS ROM and colour-corrected A series of bitmaps extracted from Casio Caleid ROM, showing multiple on-screen keyboard layouts. Some of the bitmaps are not aligned properly
Nina Kalinina
@nina_kali_nina@tech.lgbt

I assumed that Caleid SDK didn't ship the full OS - because the SIM3020 immediately boots into the Add-In program - but it seems I am wrong. CALEDATA.20 file has the launcher, coming with the full-sized bitmaps. So pretty T_T

There are place-holders for the pop-up windows, too. What a curious little operating system.

(cont)

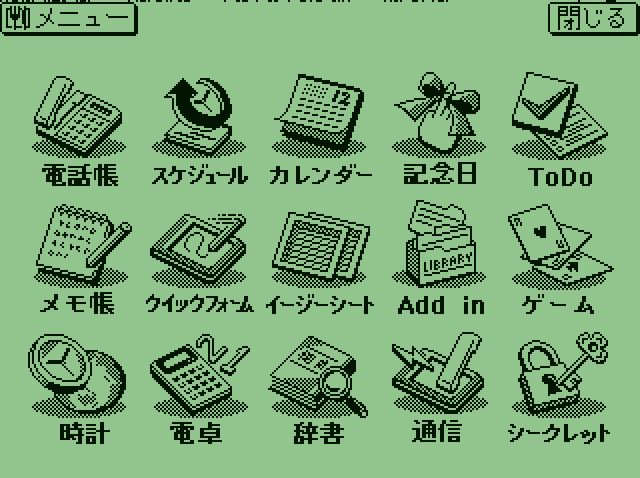

A bitmap image of the launcher for Casio Caleid OS extracted from Caleid ROM Bitmaps for the pop-up windows, as stored in the ROM (sometimes mis-aligned)
Nina Kalinina
@nina_kali_nina@tech.lgbt

Caleid.01 and .02 system files do not seem to feature anything interesting bitmap-wise at all, which is a major difference from how things are done on Casio BN-20 (that one was full of bitmaps). The Caleid SDK doesn't seem to ship with Caleid built-in software, either; there's no memo or spreadsheet in the OS files.

However, Caleid.03 and Caleid.04 system files hint that there is something called "LCD BIOS" and then there is a tool that asks the user to draw a kanji! Could it be that there's hand-written recognition tooling? In <256 KB of code? 🤔🤔

I'm also extremely curious whether Caleid had a kanji font bank. I guess I might find out soon enough.

(cont)

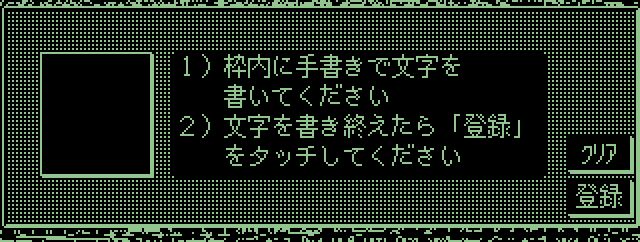

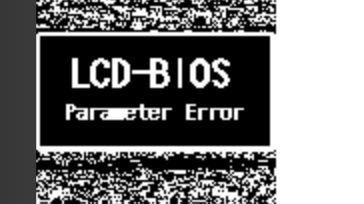

"LCD-BIOS Parameter error" -a monochrome bitmap extracted from the raw data A screenshot extracted from the ROM data. Text in Japanese asks to draw a kanji in the square box, and press "record" when it's done
Nina Kalinina
@nina_kali_nina@tech.lgbt

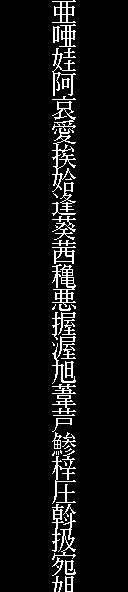

The sysbin/data folder has multiple files CALEDATA.xx. Files 01-18 are font files. There are 8-pixel wide extended ASCII fonts (including symbols for musical notations - Casio is a musical instrument company!), 8 pixel-wide kanji, 1 pixel-wide kanji and 24 pixel-wide kanji. Some of the fonts are very pretty.

(cont)

A sample of 16-pixel-wide kanji font file, showing two columns of kanji A sample of 24-pixel wide font file, a column of kanji a very densely packed 8 pixel-wide font with kanji
Nina Kalinina
@nina_kali_nina@tech.lgbt

Caleid.01 and .02 system files do not seem to feature anything interesting bitmap-wise at all, which is a major difference from how things are done on Casio BN-20 (that one was full of bitmaps). The Caleid SDK doesn't seem to ship with Caleid built-in software, either; there's no memo or spreadsheet in the OS files.

However, Caleid.03 and Caleid.04 system files hint that there is something called "LCD BIOS" and then there is a tool that asks the user to draw a kanji! Could it be that there's hand-written recognition tooling? In <256 KB of code? 🤔🤔

I'm also extremely curious whether Caleid had a kanji font bank. I guess I might find out soon enough.

(cont)

"LCD-BIOS Parameter error" -a monochrome bitmap extracted from the raw data A screenshot extracted from the ROM data. Text in Japanese asks to draw a kanji in the square box, and press "record" when it's done
